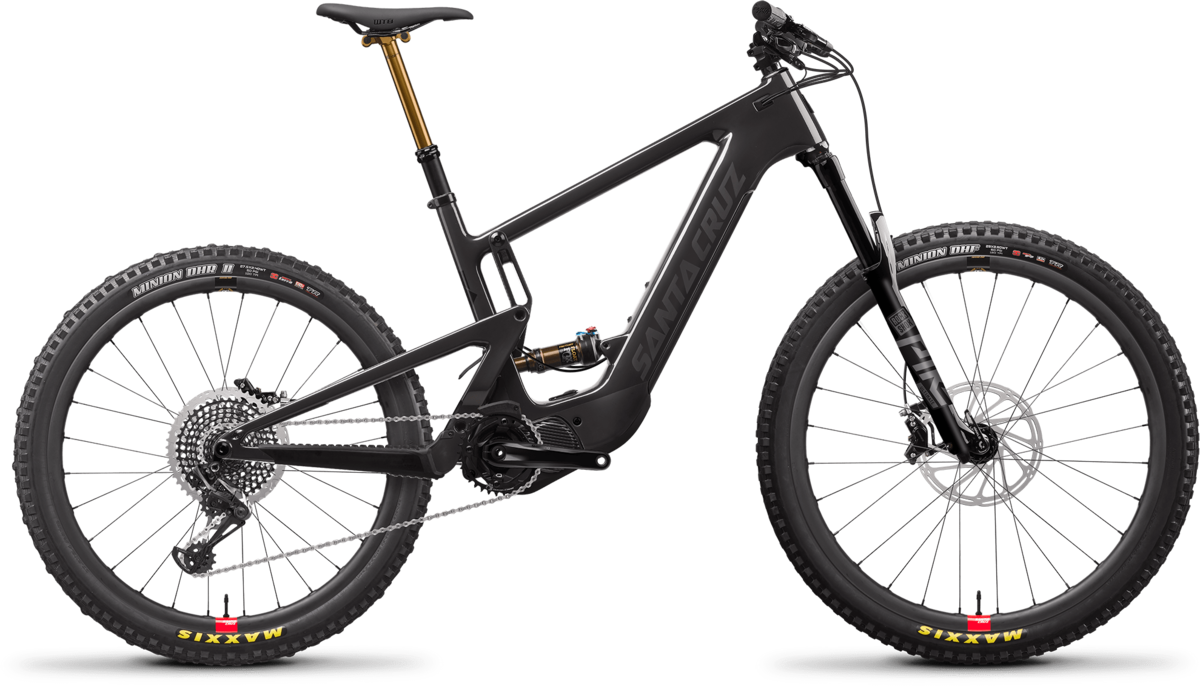

Santa Cruz Heckler MX CC X01 RSV

Santa Cruz Heckler MX CC X01 RSV
  • Color: Gloss Carbon
  • Color: Fog
$3,999.00 - $10,999.00
Color: Gloss Carbon
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please call us for more information (401)-782-4444


Our bikes have always been about amplifying fun, so our goal for the Heckler MX was to make something light and agile that can help you on-site blind terrain.

A mixed-wheel bike gives the confidence of a 29-inch wheel up front for traction and roll-over when you're caught off guard by technical features. The 27.5-inch rear wheel allowed us to keep the moderate chainstay length of the Heckler (445mm), which provides a snappy and easy-to-handle bike on tight, demanding trails. We did this without compromising on the standard Heckler's geometry, so the bike's character is still very light and accurate.

The Heckler is about expanding your own trail map—accessing previously unreachable trails, unlocking less-used trails and doing so independently. Whether tackling rides that are guarded by monstrous climbs, or cramming more into less time, it's about rarer rides becoming the norm for you. The interchangeable 500wh battery keeps the weight down compared to bikes with larger batteries but it's fast and easy to put in a fresh battery for even bigger, longer days.

The new Shimano EP8 motor is lighter than E8000 drive unit (380g), has more power (85Nm versus 70Nm), smaller volume (-10%) for greater ground clearance, less drag (50%), more heat resistant, and is tuned to give more power in Trail mode. All this means it's even more capable of tackling longer, tougher rides. We use the full Shimano STEPS battery and motor system again because it means assured reliability and global aftermarket service.


Frame Carbon CC 27.5 140mm Travel VPP
Fork RockShox Pike Ultimate, 140mm, 29"
Rear Shock FOX Float Factory DPS
Rims Front: Reserve 30 V2 29" Carbon
Rear: Reserve 30 V2 27.5" Carbon
Hubs Front: DT Swiss 350, 15x110, Torque Cap, 28h
Rear: DT Swiss 350, 12x148, XD, 28h
Spokes Sapim D-Light
Tires Front: Maxxis Minion DHF 29 x 2.5", 3C, MaxxGrip, EXO, TR
Rear: Maxxis Minion DHR II 27.5 x 2.4", 3C, EXO+
Crankset Shimano EM900 HollowTech Crank
Shifters SRAM x01 Eagle Single Click, 12spd
Rear Derailleur SRAM X01 Eagle, 12spd
Cassette/Freewheel SRAM XG1295 Eagle, 12spd, 10-52t
Chain SRAM X01 Eagle, 12spd
Brakes SRAM Code RSC
Rotors Avid Centerline 200mm
Handlebars Santa Cruz Bicycles Carbon Di2 Bar
Tape/Grips Santa Cruz Palmdale
Stem Burgtec Enduro MK3
Headset Cane Creek 40 IS Integrated
Seatpost FOX Transfer Factory
Saddle WTB Silverado Team
Pedals Sold separately
Accessories & Extras E13 E-Spec+ AL chainguide
Motor Shimano Drive Unit DU-EP800
Battery Shimano 504Wh Integrated
Controller/Display Shimano Display Unit SC-EM800

* Subject to change without notice.


Part Numbers

Option UPC MPN
Gloss Carbon / Medium 192219191119 58-21216-113-3-716-413202-01
Gloss Carbon / Large 192219183305 58-21216-113-4-716-413202-01
Gloss Carbon / X-Large 192219151755 58-21216-113-5-716-413202-01
Gloss Carbon / XX-Large 192219151977 58-21216-113-6-716-413202-01
Fog / Medium 192219151427 58-21216-113-3-717-413202-01
Fog / Large 192219191164 58-21216-113-4-717-413202-01
Fog / X-Large 192219151861 58-21216-113-5-717-413202-01
Fog / XX-Large 192219152080 58-21216-113-6-717-413202-01
