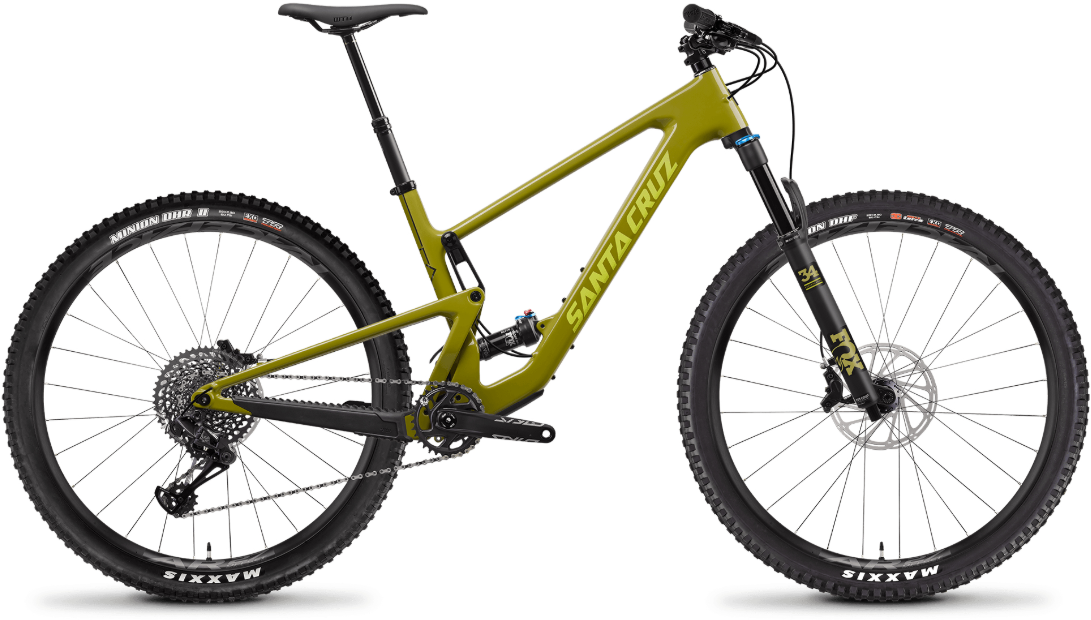

If ever there was a gravity riders’ XC bike, the Tallboy is it.
The new 120mm Tallboy takes a leap further into what short-travel bikes really are capable of. With kick-ass lower-link VPP suspension, a streamlined design, the typical Santa Cruz refinement, and rather radical geometry, the Tallboy is back to being a genre-bending folk hero.
Sure, 10mm more travel might only seem like one small step—but coupled with a lower link-driven VPP suspension design, this is one giant leap for the Tallboy.
It’s the kind of bike that makes you sprint while going up, along, over, or down due to the maximum efficiency of the VPP design and responsive, lightweight chassis. But, because it shares the same engineering principles as our longest travel bikes, the progressive lower link-mounted shock feels equally at home doing cross-country as it does in extreme-country. Paired with a 130mm fork, the new Tallboy becomes ever more appealing to riders who like to open it up.
And, the geometry, that's a big part of what's going on...
Established theory suggests shorter travel bikes get ridden slower, therefore require steeper and more conservative geometries. In reality though, when was the last time you ever throttled back on a fun trail because you weren’t on a bigger bike? Knowing your answer, we mimicked our longer travel geometry to create a bike with a 65.5-degree head-angle, generous front center, and short-offset fork, something rarely seen on a bike of this ilk.
And, the radical thinking doesn’t stop there. The Tallboy’s short-short 430mm chainstays have +/- 10mm of rear axle adjustment to ensure riders of all sizes and styles feel equally at home. Match that to a relatively low BB (335mm and 37.5mm drop), and you’ve got a combo that’s ready to haul into every pocket turn and launch out the other side.
- Carbon C frame
- FOX 34 Float Performance 130mm fork
- FOX Float Performance DPS rear shock
- Race Face AR Offset 27 29-inch rims
- Maxxis Minion tires
- 12-speed SRAM GX Eagle drivetrain
- RockShox Reverb Stealth dropper seatpost
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately
|Fork||FOX 34 Float Performance 130mm 29"|
|Headset||Cane Creek 40 IS Integrated Headset|
|Rear Shock||FOX Float Performance DPS|
|Rims/Wheels||Race Face AR Offset 27 29"|
|Spokes||DT Competition (28)|
Front: Maxxis Minion DHF 29x2.3" 3C EXO TR
Rear: Maxxis Minion DHR2 29x2.3" EXO TR
|Crankset||SRAM Stylo 7k 148 DUB|
|Bottom Bracket||SRAM DUB 68/73mm Threaded BB|
|Chain||SRAM GX Eagle 12 SPD|
|Rear Derailleur||SRAM GX Eagle|
|Cassette/Rear Cogs||SRAM XG1275 Eagle 10-50T|
|Shifters||SRAM GX Eagle|
|Handlebars||Race Face Ride 35x760mm|
|Tape/Grips||Santa Cruz Palmdale Grips|
|Stem||Race Face Aeffect R 50mm|
|Brakes||SRAM Guide R|
|Saddle||WTB Silverado Pro|
|Seat Post||RockShox Reverb Stealth 31.6mm|
* Subject to change without notice.
|Rocksteady Yellow / X-Small||192219141220||58-20208-109-1-663-183001|
|Rocksteady Yellow / Small||192219141268||58-20208-109-2-663-183001|
|Rocksteady Yellow / Medium||192219141305||58-20208-109-3-663-183001|
|Rocksteady Yellow / Large||192219141343||58-20208-109-4-663-183001|
|Rocksteady Yellow / X-Large||192219141381||58-20208-109-5-663-183001|
|Rocksteady Yellow / XX-Large||192219141428||58-20208-109-6-663-183001|
|Stormbringer Purple / X-Small||192219141206||58-20208-109-1-662-183001|
|Stormbringer Purple / Small||192219141244||58-20208-109-2-662-183001|
|Stormbringer Purple / Medium||192219141282||58-20208-109-3-662-183001|
|Stormbringer Purple / Large||192219141329||58-20208-109-4-662-183001|
|Stormbringer Purple / X-Large||192219141367||58-20208-109-5-662-183001|
|Stormbringer Purple / XX-Large||192219141404||58-20208-109-6-662-183001|
