Details

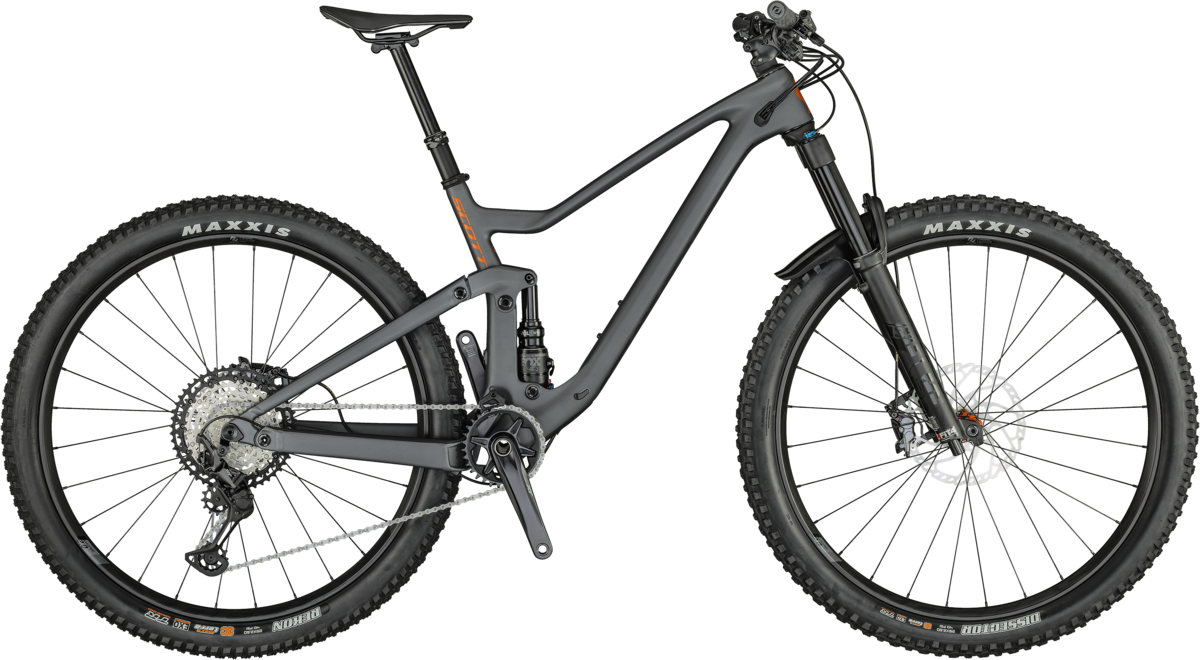

The Genius was put on this earth to get you up mountains with ease and to get you back down them in a flash. The Genius 920 features our TwinLoc Suspension System to always optimize your ride. With a Shimano 12-speed drivetrain and Syncros components, the Genius 920 is action ready. Any Trail. Any Time.
Key Features
- Genius Carbon HMF-Alloy Frame
- FOX 36 Float Perf. Elite 150mm Fork
- FOX Nude TR EVOL, TwinLoc, 150mm Shock
- Shimano XT 12 Speed Drivetrain
- Shimano XT 4 Piston Disc Brakes
- Syncros Revelstoke 2.0 TR Wheels
- Maxxis Kevlar Tires
- FOX Dropper Post, Syncros Parts
Specs
Frame | Genius Carbon / IMP Technology / HMF Main Frame, BB92 / Alloy SL 6011 swingarm, VLK Virtual 4 Link kinematic, 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj., SW dropouts for Boost 12x148mm, TBC Trunnion box construction |
---|---|
Fork | FOX 36 Float Performance Elite Air FIT4, 3-Modes with low Speed adj. / Kabolt 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout, 150mm travel |
Headset | Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8", OD 50/62mm / ID 44/56mm |
Rear Shock | FOX NUDE TR EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, custom Ramp Adjust with linear and progressive setting, DPS / Reb. Adj., Travel 150-100-Lockout / 185X55mm |
Axles |
Front: 110 x 15mm thru-axle Rear: 148 x 12mm thru-axle |
Rims/Wheels | Syncros Revelstoke 2.0 6 Bolt, 30mm Tubeless ready rim 28H / Micro Spline, Syncros Axle w/Removable Lever with Tool |
Tires |
Front: Maxxis Dissector / 2.6" / 60TPI Kevlar Bead, Tubeless Ready / EXO 3C maxx Terra Rear: Maxxis Rekon / 2.6" / 60TPI Kevlar Bead, Tubeless Ready / EXO 3C maxx Terra |
Crankset | Shimano XT FC-M8100-1 / Hollowtech 2 |
Chainrings | 32T |
Bottom Bracket | Shimano SM-BB71-41A / shell 41x92mm |
Chain | Shimano SLX CN-M7100 |
Rear Derailleur | Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed |
Cassette/Rear Cogs | Shimano XT CS-M8100-12 / 10-51 T |
Shifters | Shimano XT SL-M8100-IR / Rapidfire Plus, Ispec EV clamp |
Handlebars | Syncros Hixon 1.5 / Alloy 7050D.B., 12mm rise / 9° / 780mm, Syncros Pro lock-on grips |
Stem | Syncros FL1.5 / Alloy 2014, integrated Spacer & Top Cap / 31.8mm / 6° / 1 1/8" |
Brakes | Shimano XT M8120 4 Piston Disc |
Pedals | Sold separately |
Saddle | Syncros Tofino 2.0 Regular, CRMO rails |
Seat Post | FOX Transfer Performance Elite Dropper Post, 31.6mm / S size 125mm / M & L size 150mm / XL size 175mm |
Accessories & Extras | Fox 36 Fender |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Gray / Small | 192820436814 | 280533006 |
Gray / Medium | 192820436821 | 280533007 |
Gray / Large | 192820436838 | 280533008 |
Gray / X-Large | 192820436845 | 280533009 |
