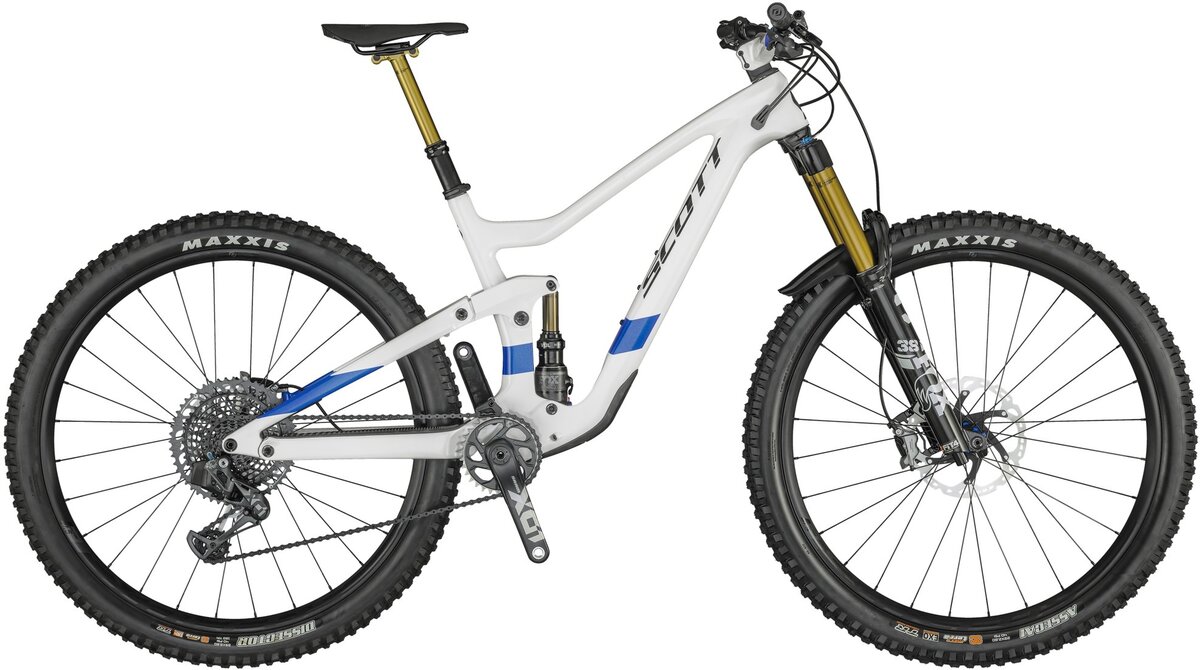

Scott Ransom 900 Tuned AXS

Scott Ransom 900 Tuned AXS
This item is currently not available.


The Ransom. 170mm of trail munchin', climb crushing, stage winning all day pinning mountain biking excellence. The Tuned version comes equipped with the all new FOX 38 fork, our TwinLoc Suspension System, a SRAM Eagle AXS groupset and high-end Syncros components to help you get away with murder, regardless of your ability level.

- Ransom Carbon HMX Frame
- FOX 38 Float Factory 170mm
- FOX Nude TR EVOL, TwinLoc, 170mm
- SRAM X01 AXS Eagle 12 Speed
- Shimano XTR 4 Piston Disc Brakes
- Syncros Revelstoke 1.5 TR Wheels
- Maxxis Kevlar Tires
- FOX Dropper Post, Syncros CF Parts


Frame Ransom Carbon / IMP Technology / HMX, BB92 / Carbon swingarm, VLK Virtual 4 Link kinematic, 27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj., SW dropouts for Boost 12x148mm, TBC Trunnion box construction
Fork FOX 38 Float Factory Air / Kashima / FIT4, 3-Modes with low Speed adj. / Kabolt 15x110mm axle, 44mm offset / tapered steerer / Reb. Adj. / Lockout / 170mm travel
Headset Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8", OD 50/62mm / ID 44/56mm
Rear Shock FOX NUDE TR EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, custom Ramp Adjust with linear and progressive setting, DPS / Kashima / Reb. Adj., Travel 170-120-Lockout / 205X65mm
Rims/Wheels Syncros Revelstoke 1.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with Tool
Tires Front: Maxxis Assegai / 2.6" / 120TPI Kevlar Bead / EXO / TR / 3C Maxx Terra
Rear: Maxxis Dissector / 2.6" / 120TPI Kevlar Bead / EXO+/ TR / 3C Maxx Terra
Crankset SRAM X01 Eagle DUB Boost Carbon crankarm, QF 168 / 32T
Bottom Bracket SRAM DUB PF integrated / shell 41x92mm
Chain SRAM PCXX1 Black Eagle
Rear Derailleur SRAM X01 / Eagle 12 Speed
Cassette/Rear Cogs SRAM X01 / XG1295 / 10-52 T
Shifters SRAM X01 Eagle Trigger
Handlebars Syncros Hixon iC Rise Carbon, 20mm rise / 8° / 800mm, Syncros Pro lock-on grips
Brakes Shimano XTR M9120 4 Piston Disc
Pedals Sold separately
Saddle Syncros Kaslo 1.5, Titanium Rails
Seat Post FOX Transfer Factory Dropper Post / Kashima, 31.6mm / S 125mm / M size 150mm / L & XL 175mm
Accessories & Extras SCOTT Chainguide, SRAM AXS Powerpack, Fox 38 Fender, Syncros Eco Sealant, Transport Axle

* Subject to change without notice.

Part Numbers

Option UPC MPN
White/Blue / Small 192820437217 280545006
White/Blue / Medium 192820437224 280545007
White/Blue / Large 192820437231 280545008
White/Blue / X-Large 192820437248 280545009
