Details

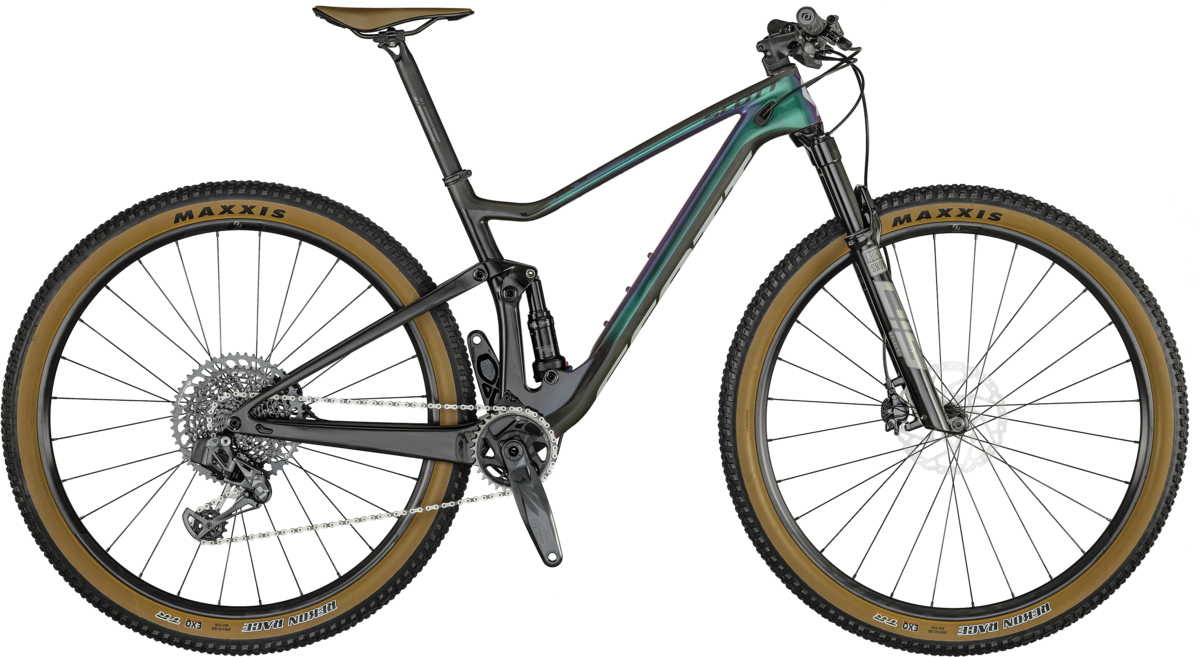

With the Spark RC Team Issue AXS, take your World Championship dreams and start making them a reality. The fastest frame on the market, a wireless SRAM 12-speed groupset, and Syncros components combine to give you the perfect tool for the job, whether you're racing a local weekend race or toeing it up for your first World Cup.
Key Features
- Spark RC Carbon HMF Frame
- RockShox SID Select RL3 110mm
- FOX Nude EVOL, 100mm, TwinLoc
- SRAM X01 AXS Eagle 12 Speed Drivetrain
- Shimano XT Disc Brakes
- Syncros Silverton 2.0 TR Wheels
- Maxxis Rekon Race Kevlar Tires
- Syncros Carbon Parts
Specs
Frame | Spark RC Carbon / IMP Technology / HMF, 1x optimized / BB92 /Carbon swingarm, SW dropouts for Boost 12x148mm, TBC Trunnion Box Construction |
---|---|
Fork | RockShox SID Select RL3 Air, custom Charger 3-Modes Damper, 15x110mm Maxle Stealth / 44mm offset / Tapered steerer, Lockout / Reb. Adj. / 110mm travel |
Headset | Syncros Pro Drop in / Tapered 1.5"-1 1/8", Bearing diameter size 42mm and 52mm |
Rear Shock | FOX NUDE EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, DPS / Reb. Adj./ Travel 100-70-Lockout / 165X40mm |
Axles |
Front: 110 x 15 thru-axle Rear: 148 x 12mm thru-axle |
Rims/Wheels | Syncros Silverton 2.0 6 Bolt, 25mm Tubeless ready rim / 28H / XD Driver, Syncros Axle w/Removable Lever with Tool |
Tires | Maxxis Rekon Race / 2.35" / 120TPI Kevlar Bead, Tubeless Ready / EXO |
Crankset | SRAM GX Eagle DUB Boost |
Chainrings | 32T |
Bottom Bracket | SRAM DUB PF integrated / shell 41x92mm |
Chain | SRAM CN GX Eagle |
Rear Derailleur | SRAM X01 Eagle AXS / 12 Speed, Wireless Electronic Shift System |
Cassette/Rear Cogs | SRAM XG1275 / 10-52 T |
Shifters | SRAM Eagle AXS Controller |
Handlebars | Syncros Fraser 1.0 Carbon, T shape flat / 9° / 740mm, Syncros Pro lock-on grips |
Stem | Syncros XR1.5 -8°, Integrated Spacer & Top Cap, 2014 Alloy / 31.8mm / 1 1/8" |
Brakes | Shimano XT M8100 Disc |
Pedals | Sold separately |
Saddle | Syncros Belcarra Regular 1.5, Titanium rails |
Seat Post | Syncros Duncan 1.5 / 10mm offset, 31.6x400mm |
Accessories & Extras | Transport Axle |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Green/Black / Small | 192820434674 | 280495006 |
Green/Black / Medium | 192820434681 | 280495007 |
Green/Black / Large | 192820434698 | 280495008 |
Green/Black / X-Large | 192820434704 | 280495009 |
Black / Small | 192820434629 | 280496006 |
Black / Medium | 192820434636 | 280496007 |
Black / Large | 192820434643 | 280496008 |
Black / X-Large | 192820434650 | 280496009 |
