Trek Top Fuel 9.8 XT

Trek Top Fuel 9.8 XT
  • Color: Matte Carbon/Gloss Trek Black
  • Color: Trek Black to Teal Fade
  • Color: Viper Red
$5,499.99
Please select options
Order now and pick up in-store for free

Details

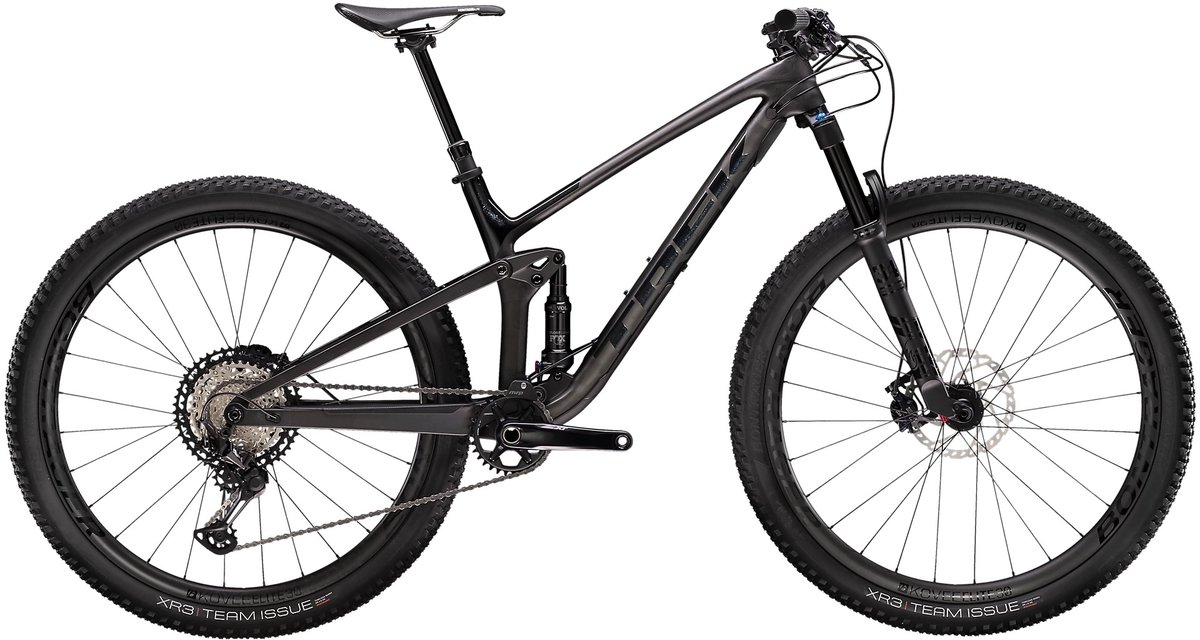

Top Fuel 9.8 is a high-performance full suspension mountain bike for endurance racers and riders who don't settle for one style of riding. It combines the best qualities of XC and trail bikes for an unbelievably fun, efficient, and capable rig. It's fast on flow, shreds big singletrack, and conquers endurance events. The 9.8 is built with an OCLV Mountain Carbon frame and across-the-board parts upgrades, including a 120mm FOX Performance 34 Step-Cast fork, Shimano XT drivetrain, and carbon wheels and bars.

It's right for you if...
You want an efficient, capable, short-travel trail bike that excels at endurance and stage racing and can handle rough trails and even XC races. You appreciate the performance advantage of carbon and want a superlight bike with race-level components and suspension.

The tech you get
A full OCLV Mountain Carbon frame, upgraded 120mm Fox Performance 34 Step-Cast Float fork with GRIP damper, 115mm of rear travel with a FOX Performance Float shock, and a 1x12 Shimano XT drivetrain. Plus, wide carbon Bontrager Kovee Elite 30 wheels with a 54-tooth Rapid Drive hub for fast engagement, TwistLoc dual remote suspension lockout, Bontrager Line Elite Dropper, Bontrager Line Pro OCLV Carbon handlebar, and upgraded Shimano SLX brakes.

The final word
Top Fuel 9.8 is an efficient, capable, and ridiculously fun short-travel carbon trail bike with the performance boost of upgraded parts like the drivetrain, fork, and brakes. It's built to rip technical terrain and descents, speed through flow sections, and withstand the beating endurance races dole out.

Why you'll love it
- This bike wants to go fast—it's built with no-nonsense, high-performance parts
- You get a Straight Shot down tube for extra stiffness in the rough and Knock Block frame defense to protect against spinning bars and fork crowns
- TwistLoc simultaneously locks out front and rear shocks for climbs and sprints with the simple Grip Shift-like motion
- Wider Kovee Elite 30 wheels provide better tire support so you can run lower pressure and get more traction
- This short-travel trail bike gives you a suspension setup that’s capable in several MTB disciplines, and especially suited to endurance events

A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.

Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.

Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.

Specs

Frame OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115mm travel
Fork Fox Performance 34 Step-Cast, Float EVOL air spring, GRIP 2-position damper, dual remote, tapered steerer, 44mm offset, Boost110, 15mm bolt-on axle, 120mm travel
Headset Knock Block Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Rear Shock Fox Performance Float, 2-position DPS damper, TwistLoc remote, tuned by Trek Suspension Lab, 190x45mm
Axles Front: 15x110mm
Rear: 12x148mm
Rims/Wheels Bontrager Kovee Elite 30 carbon, Tubeless Ready, 6-bolt, Boost110 front, Boost148 rear
Tires Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40"
Crankset Shimano XT M8100 Boost
Chainrings 32T alloy ring
Bottom Bracket Shimano MT500, 92mm, PressFit
Chain Shimano XT M8100, 12 speed

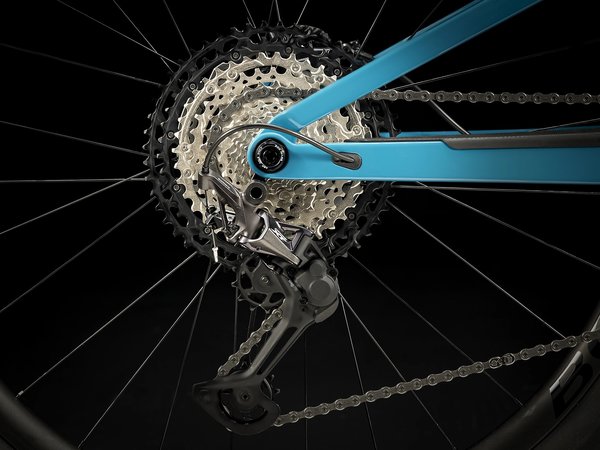

Rear Derailleur Shimano XT M8100, long cage, 51T max cog
Cassette/Rear Cogs Shimano XT M8100, 10-51, 12 speed
Shifters Shimano XT M8100, 12 speed
Handlebars Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise
Tape/Grips SRAM TwistLoc
Stem Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree
Brakes Shimano SLX M7000 hydraulic disc, 180mm front rotor, 160mm rear rotor
Saddle Bontrager Montrose Elite, titanium rails, 138mm width
Seat Post Bontrager Line Elite Dropper, internal routing, 31.6mm

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Matte Carbon/Gloss Trek Black / Medium/Large 601842223635 595475 TOP38337346K
Trek Black to Teal Fade / Large 601842223567 595482 TOP3193852E
