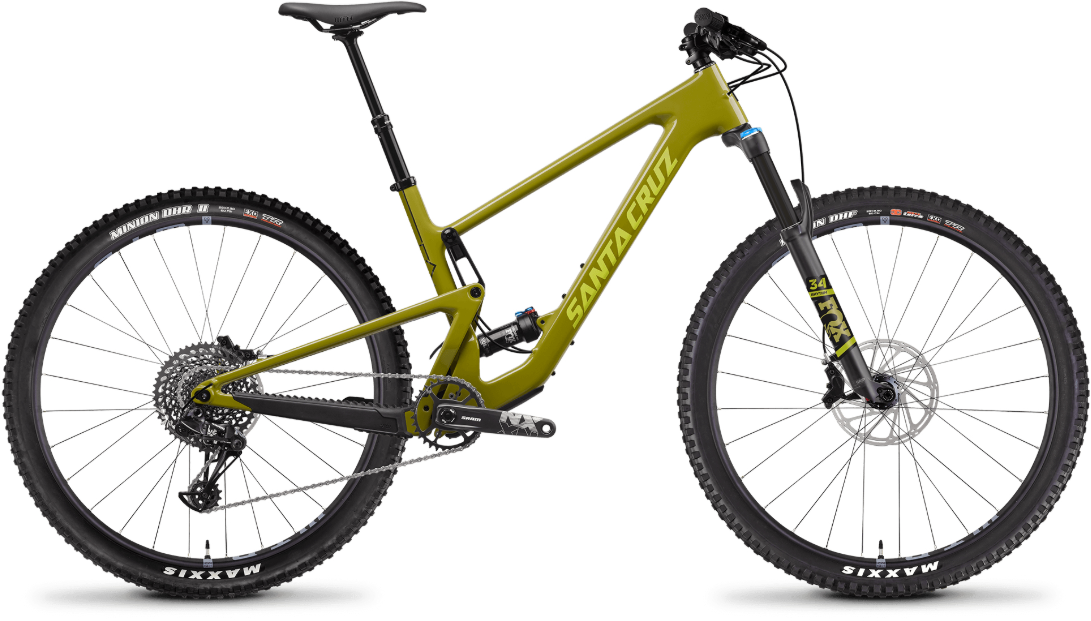

Santa Cruz Tallboy Carbon C R

Santa Cruz Tallboy Carbon C R
  • Color: Rocksteady Yellow
  • Color: Stormbringer Purple
$4,199.00
Color:
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please call us for more information (401)-782-4444

Details

If ever there was a gravity riders’ XC bike, the Tallboy is it.

The new 120mm Tallboy takes a leap further into what short-travel bikes really are capable of. With kick-ass lower-link VPP suspension, a streamlined design, the typical Santa Cruz refinement, and rather radical geometry, the Tallboy is back to being a genre-bending folk hero.

Sure, 10mm more travel might only seem like one small step—but coupled with a lower link-driven VPP suspension design, this is one giant leap for the Tallboy.

It’s the kind of bike that makes you sprint while going up, along, over, or down due to the maximum efficiency of the VPP design and responsive, lightweight chassis. But, because it shares the same engineering principles as our longest travel bikes, the progressive lower link-mounted shock feels equally at home doing cross-country as it does in extreme-country. Paired with a 130mm fork, the new Tallboy becomes ever more appealing to riders who like to open it up.

And, the geometry, that's a big part of what's going on...

Established theory suggests shorter travel bikes get ridden slower, therefore require steeper and more conservative geometries. In reality though, when was the last time you ever throttled back on a fun trail because you weren’t on a bigger bike? Knowing your answer, we mimicked our longer travel geometry to create a bike with a 65.5-degree head-angle, generous front center, and short-offset fork, something rarely seen on a bike of this ilk.

And, the radical thinking doesn’t stop there. The Tallboy’s short-short 430mm chainstays have +/- 10mm of rear axle adjustment to ensure riders of all sizes and styles feel equally at home. Match that to a relatively low BB (335mm and 37.5mm drop), and you’ve got a combo that’s ready to haul into every pocket turn and launch out the other side.

Build Highlights
- Fox Rhythm 34 130mm fork
- FOX Float Performance DPS rear shock
- WTB ST i25 TCS 2.0 29-inch rims
- Maxxis Minion tires
- 12-speed SRAM NX Eagle drivetrain
- Race Face Aeffect dropper seatpost

A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.

Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.

Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.

Specs

Frame Carbon C
Fork Fox Rhythm 34 130mm 29"
Headset Cane Creek 10 IS Integrated Headset
Rear Shock FOX Float Performance DPS
Axles Front: 15x110mm
Rear: 12x148mm
Rims/Wheels WTB ST i25 TCS 2.0 29"
Hubs Front: SRAM MTH 716, Torque Cap, 32h
Rear: SRAM MTH 746, 32h
Spokes DT Competition (32)
Tires Front: Maxxis Minion DHF 29x2.3" EXO TR
Rear: Maxxis Minion DHR2 29x2.3"EXO TR
Crankset SRAM NX Eagle 148 DUB
Chainrings 32T
Bottom Bracket SRAM DUB 68/73mm Threaded BB
Chain SRAM NX Eagle
Rear Derailleur SRAM NX Eagle
Cassette/Rear Cogs SRAM PG1230 11-50T
Shifters SRAM NX Eagle
Handlebars Race Face Ride 35x760mm
Tape/Grips Santa Cruz Palmdale Grips
Stem Race Face Ride 50mm
Brakes SRAM Guide T
Saddle WTB Silverado Race Saddle
Seat Post Race Face Aeffect, 31.6mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Rocksteady Yellow / X-Small 192219141091 58-20208-106-1-663-182701
Rocksteady Yellow / Small 192219141114 58-20208-106-2-663-182701
Rocksteady Yellow / Medium 192219141138 58-20208-106-3-663-182701
Rocksteady Yellow / Large 192219141152 58-20208-106-4-663-182701
Rocksteady Yellow / X-Large 192219141176 58-20208-106-5-663-182701
Rocksteady Yellow / XX-Large 192219141190 58-20208-106-6-663-182701
Stormbringer Purple / X-Small 192219141084 58-20208-106-1-662-182701
Stormbringer Purple / Small 192219141107 58-20208-106-2-662-182701
Stormbringer Purple / Medium 192219141121 58-20208-106-3-662-182701
Stormbringer Purple / Large 192219141145 58-20208-106-4-662-182701
Stormbringer Purple / X-Large 192219141169 58-20208-106-5-662-182701
Stormbringer Purple / XX-Large 192219141183 58-20208-106-6-662-182701
